What Are Carbide planner blades?
Definition and Why Pros Choose Them

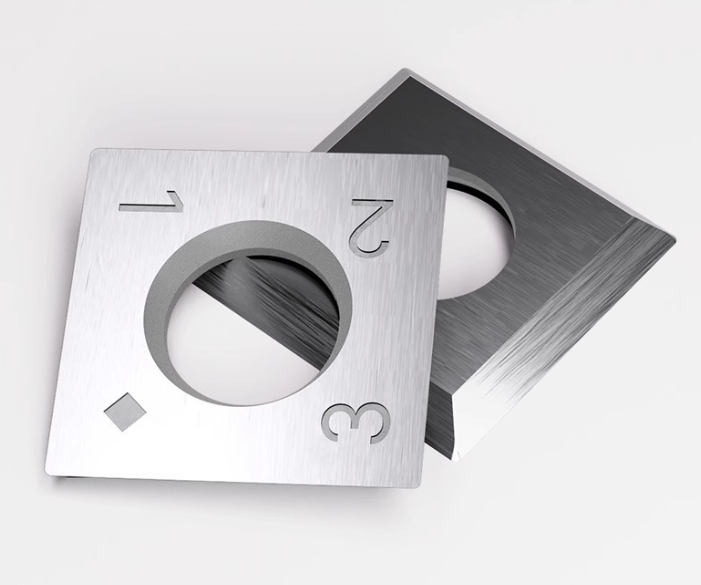

Carbide planner blades are indexable or replaceable cutting knives made from tungsten carbide, engineered to deliver long-lasting sharpness and a superior surface finish. In Australia, Canada, the United States, and Europe, shops adopt Carbide planner blades for planers, jointers, shapers, and CNC tooling because they cut cleanly, change quickly, and keep production moving with minimal downtime.
In professional woodworking, Carbide Planner Blades have become the standard choice for thickness planers, jointers, and moulders, offering exceptional wear resistance and consistent surface quality. These indexable or disposable carbide inserts eliminate the need for tedious knife setting and balancing, dramatically reducing setup time while delivering superior finishes on hardwoods, softwoods, and engineered panels. 하지만, even the best Carbide Planner Blades can encounter performance issues when subjected to improper feed techniques, incorrect machine setup, 아니면 관리가 부족하거나. Understanding their primary functions in planing operations, recognizing common problems with practical solutions, and following essential safety practices ensures you maximize the cost-effectiveness and longevity these advanced cutting tools provide.
Primary Functions of Carbide Planner Blades in Woodworking
Carbide Planner Blades serve as the cutting elements in thickness planers, jointers, and four-sided moulders, where they transform rough lumber into dimensionally accurate, smoothly finished boards. Unlike traditional high-speed steel knives that require manual setting and frequent sharpening, these disposable carbide inserts feature multiple cutting edges—typically two or four per insert. 한쪽 끝이 무뎌지면, operators simply loosen the clamping screw, rotate the insert to expose a fresh edge, and resume work within minutes.
Common applications include face planing of hardwoods and softwoods, edge jointing for glue-up preparation, thicknessing of glued-up panels, and high-volume dimensioning in cabinet shops and flooring operations. For workshops processing abrasive species like teak, ipe, or reclaimed lumber with embedded debris, Carbide Planner Blades maintain cutting sharpness five to ten times longer than conventional steel knives, significantly reducing downtime and improving throughput.
다섯 가지 일반적인 문제와 실제적인 해결책
문제 1: Tear-out or Fuzzy Grain on Finished Surface
가장 실망스러운 문제 중 하나는 Carbide Planner Blades is producing boards with torn grain, fuzzy patches, or rough surfaces that require extensive sanding. This typically indicates dull inserts, incorrect cutting depth, or feeding against the wood grain.
해결책: 첫 번째, rotate all inserts on the Carbide Planner Blades to expose fresh cutting edges—dull carbide creates friction rather than clean shearing action. 두번째, verify your depth of cut; taking too heavy a pass on figured woods causes tear-out. Reduce to 1-2mm per pass for difficult grain. 제삼, check the feed direction relative to grain orientation; always feed stock with the grain running upward into the cutterhead. For reversing grain or highly figured wood, consider reducing feed speed and using a lighter cut with your Carbide Planner Blades. 마지막으로, ensure the cutterhead is parallel to the machine table—misalignment causes uneven engagement that tears grain on one side.
문제 2: Excessive Insert Chipping or Breakage
언제 Carbide Planner Blades suffer frequent insert chipping or complete fracture, the culprit is usually foreign object impact, improper feed technique, or using incorrect insert grade for the material being processed. Broken inserts damage workpieces and create dangerous projectiles.
해결책: Implement rigorous lumber inspection before planing—remove all nails, 스테이플, and embedded gravel. For reclaimed or construction lumber, use a metal detector before feeding material into the planer. 두번째, avoid feeding material with loose knots or bark inclusions; these impact Carbide Planner Blades with shock loads that fracture carbide. 제삼, verify you are using the correct insert grade for your application. Standard carbide inserts work well for clean hardwoods and softwoods, but processing abrasive materials like MDF or particleboard requires specialized coated or high-wear grades. Fourth, ensure the insert pockets on your Carbide Planner Blades are clean and free from debris before installing new inserts—trapped particles prevent proper seating and cause uneven stress.
문제 3: Snipe or Uneven Cut at Board Ends
Snipe—the deeper cut at the beginning or end of a board—is a common complaint when using Carbide Planner Blades. This problem stems from improper roller pressure, incorrect cutterhead positioning, or worn infeed/outfeed tables.
해결책: Adjust your infeed and outfeed rollers to apply consistent pressure across the entire board length. Uneven roller pressure allows the board to lift slightly, causing the Carbide Planner Blades to cut deeper at the ends. 두번째, ensure the cutterhead is positioned at the correct height relative to the table bed—if the cutterhead is too high, the board pivots on the leading roller creating snipe. 제삼, check that your machine’s table rollers or bed plates are not worn or grooved; uneven surfaces allow board rocking. 마지막으로, when feeding short stock, use sacrificial support blocks or consider upgrading to Carbide Planner Blades with chip-limiting geometry that reduces the impact of uneven feeding.
문제 4: Burn Marks or Glazing on Workpiece Surface
Burn marks across planed boards indicate excessive friction heat generated by Carbide Planner Blades. This problem typically stems from dull inserts, insufficient feed speed, or resin buildup on cutting edges.
해결책: Rotate inserts to expose fresh cutting edges—Carbide Planner Blades are designed for easy indexing, and operators should rotate after every few hours of heavy use.
두번째, increase feed speed; contrary to intuition, feeding faster reduces burning because each insert takes a thicker chip that carries heat away from the cutting zone.
제삼, clean the cutterhead thoroughly; pitch and resin accumulated on inserts and between clamping pockets insulates heat and creates friction. Use non-toxic resin removers safe for carbide. For resinous woods like pine or cherry, apply specialized lubricants or waxes to the cutterhead between passes. 마지막으로, reduce depth of cut if burning persists—taking multiple lighter passes generates less friction than one heavy cut with Carbide Planner Blades.
문제 5: Difficulty Rotating or Replacing Inserts
Operators sometimes find the indexing mechanism on Carbide Planner Blades difficult to use, with frozen screws or inserts that won’t seat properly. This leads to skipped rotations and continued use of dull cutting edges.
해결책: Apply anti-seize compound to insert clamping screws during installation to prevent galling and corrosion from resin exposure. When removing stubborn screws, use high-quality hex keys or Torx drivers that fit precisely—rounded tools damage screw heads and make future indexing impossible. Never overtighten insert screws; follow torque specifications from the Carbide Planner Blades manufacturer. Clean insert pockets thoroughly before installing new inserts; debris trapped beneath an insert prevents proper seating and affects cutting geometry. For Carbide Planner Blades with wear-resistant coatings on inserts, ensure you are rotating to the correct position—some inserts have multiple usable edges but specific indexing requirements. Consider establishing a preventive maintenance schedule for the cutterhead body itself, including cleaning and inspecting screw threads periodically.
Essential Safety Recommendations for Carbide Planner Blades
Working with Carbide Planner Blades requires strict attention to safety due to their extreme sharpness and the high-speed rotating mass of the cutterhead. Always disconnect power and allow the cutterhead to come to a complete stop before performing any inspection, cleaning, or insert rotation. Never reach into the machine while the cutterhead is spinning—Carbide Planner Blades can cause severe lacerations. Wear impact-rated safety glasses; a broken carbide insert ejected from the cutterhead can cause serious eye injuries. Cut-resistant gloves are essential during insert changes and cleaning but must never be worn while the machine is operating.
Before installing Carbide Planner Blades, inspect the steel body for cracks, the inserts for chips, and ensure all clamping screws are in good condition. Use push blocks or power feeders when planing short or narrow stock; hands must never approach the cutterhead area. Ensure all guards, anti-kickback devices, and dust extraction hoods are in place and functioning properly.
Never exceed the maximum RPM rating specified for your machine or cutterhead. 마지막으로, receive thorough training on your specific planer’s lockout/tagout procedures and emergency stop functions before performing any maintenance on Carbide Planner Blades.
결론
Carbide Planner Blades have transformed woodworking planing operations through superior wear resistance, rapid indexing, and consistent surface quality. By understanding their primary functions and recognizing the five common issues outlined above—tear-out, insert chipping, snipe, 화상 자국, and difficult indexing—operators can implement practical solutions that restore performance and extend component life. Regular insert rotation, proper feed rates, thorough cleaning, and adherence to safety practices ensure that Carbide Planner Blades deliver the exceptional results they are designed to provide. 올바른 관리와 운영으로, these innovative cutters turn challenging planing operations into efficient, 일관된 생산 프로세스.
